SMT Pick Place Machine
SMT placement machine from AUTOTRONIK-SMT
All assembly systems have been developed for the flexible production of SMT projects. During the development of the systems, short changeover times, e.g. thanks to barcode support and a modular structure, so that all available options can be retrofitted at the customer’s site.
SMT placement machine
from small batch sizes to series production
Our product range extends from placement machines designed specifically for prototype production—as well as for small and medium production runs—to inline systems for large-scale production. During the development of these systems, emphasis was placed on short changeover times—for example, through barcode support and a modular design—so that all available options can be retrofitted on-site at the customer’s location.
Prototypes - small series

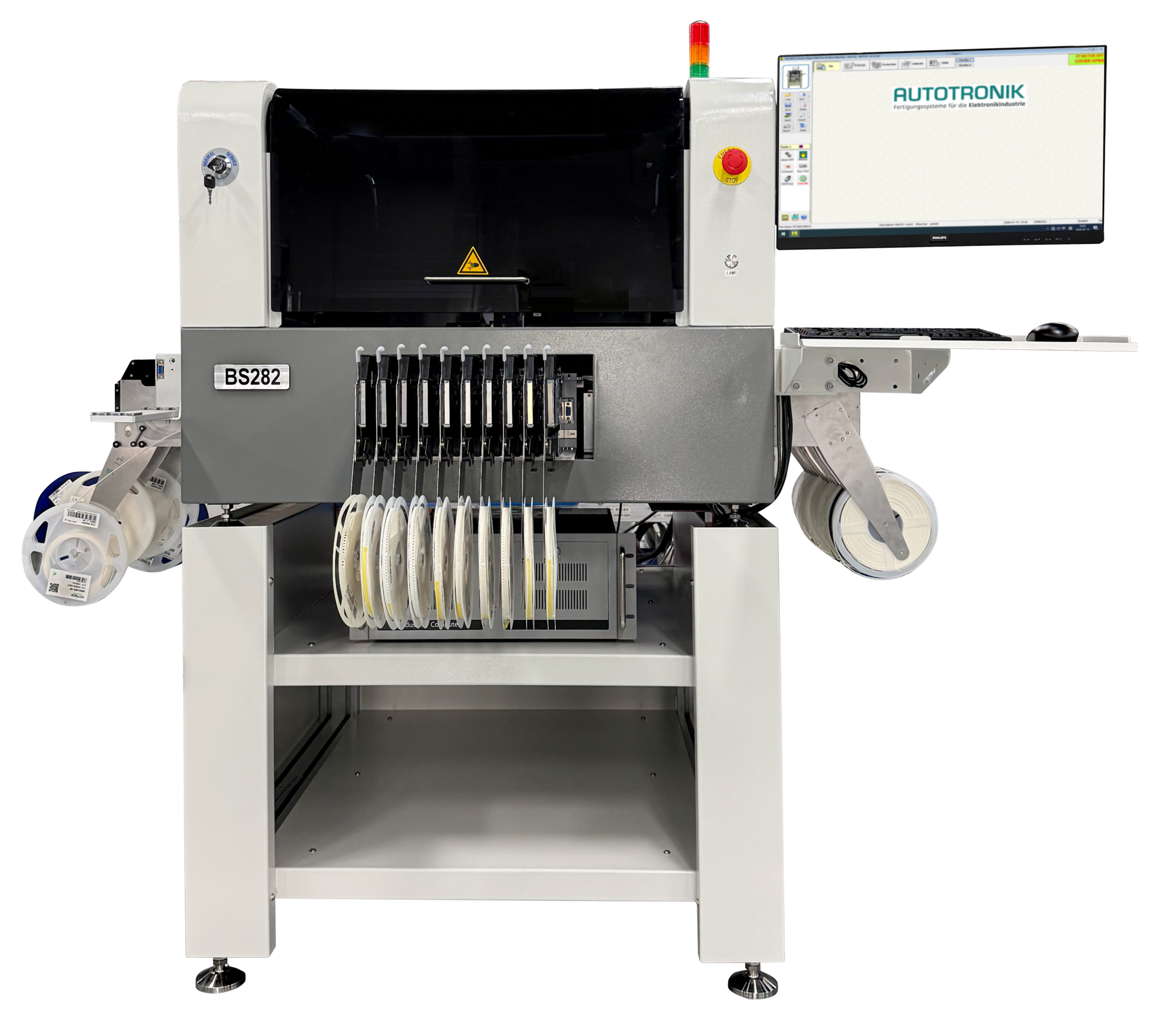

MODEL: BS282E-V
SMD pick-and-place machine Bench-Top
- up to 84x 8/12 mm tape feeders
- Mounting range: max. 320 x 415mm
- maximum speed: 3000 BT/h
- Components 01005 up to 0.5mm pitch
small - medium batch
MODEL: BA385E1-V /
BA385E2-V
BA385E2-V
SMT Pick Place Machine
- up to 128x 8/12mm tape feeder
- Mounting range: max. 435 x 430mm
- maximum speed: 6400 BT/h
- Components 01005 up to 0.3 mm pitch
MODEL: BA388E2-V /
BA388E4-V
BA388E4-V
SMT Pick Place Machine
- up to 256x 8/12mm tape feeder
- Mounting range: max. 1200 x 408mm with conveyor belt
- maximum speed: 8800 BT/h
- Components 01005 up to 0.3 mm pitch
MODEL: BA392E1-V /
BA392E2-V
BA392E2-V
SMD Pick & Place Machine
- up to 160x 8/12mm tape feeder
- Mounting range: max. 600 x 350mm
- maximum speed: 6400 BT/h
- Components 01005 up to 0.3 mm pitch
large batch
MODEL: BA389E3-V
SMD Pick & Place Machine
- up to 160x 8/12mm tape feeder
- Mounting range: max. 650 x 460mm
- Maximum speed: 10,500 BT/h
- Components 01005 up to 0.3 mm pitch
MODEL: BA889CY-E6-V
SMD Pick & Place Machine
- up to 96x 8/12mm tape feeder
- Mounting range: max. 650 x 460mm
- Maximum speed: 20,000 BT/h
- Components 01005 up to 0.3 mm pitch
LED-Production
MODEL: HD806 / HD812
SMD Pick & Place Machine
- up to 16x 8/12mm tape feeder
- Mounting range: max. 1200 x 300mm
- Maximum speed: 30,000 BT/h
- Linear motor in X-axis
